Specifications

Our Concrete pumps serve a great deal of South Africa. We offer a wide variety of different pumps to fit the individual jobs.

Select the pump your job and check out the specifics.

24 m, 32 m, 36 m Line pump

24m
32m
36m
BSA 1409 Line Pump

24m

Boom (M 24-4)
model	M 24-4
delivery line dn	125/5,5
arms	4
folding system	ZR
vertical reach	23.6m	77'5"
horizontal reach	19.7m	64'7"
depth of reach	14.5m	47'7"
unfold height	4.9m	16'1"
end hose length max	4m	13
support leg force front	140kN	140
support leg force rear	95kN	95

*Disclaimer: Specifications & Images found at Putzmeister.co.za

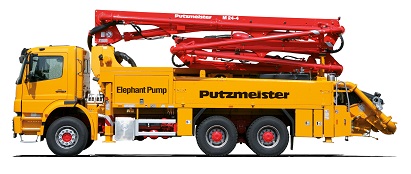

M24

M24

Click here to download the datasheet

M32

Boom (M 31-5)
model	M 31-5
delivery line dn	125/5,5
arms	5
folding system	MZR
vertical reach	30.5m	100'
horizontal reach	26.6m	87'3"
depth of reach	20.4m	66'11"
unfold height	5.7m	18'8"
end hose length max	4m	13

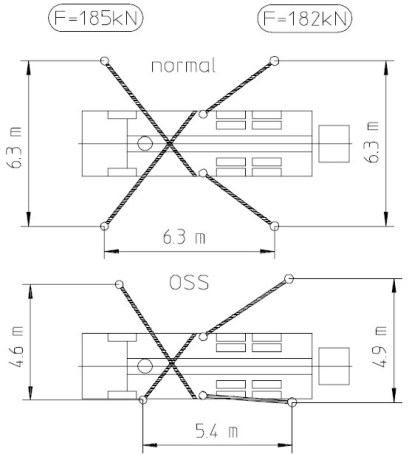

support leg force front	185kN
support leg force rear	182kN

*Disclaimer: Specifications & Images found at Putzmeister.co.za

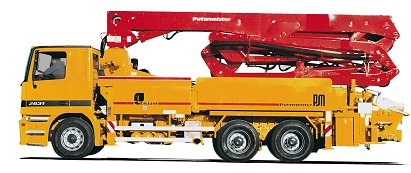

M32

M32

Click here to download the datasheet

M36

Boom (M 36-4)
model	M 36-4
delivery line dn	125/5,5
arms	4
folding system	Z
vertical reach	35.6m	116'9"
horizontal reach	31.7m	103'12''
depth of reach	23.7m	77'9"
unfold height	8.7m	28'6"
end hose length max	4m	13
support leg force front	180kN
support leg force rear	185kN

*Disclaimer: Specifications & Images found at Putzmeister.co.za

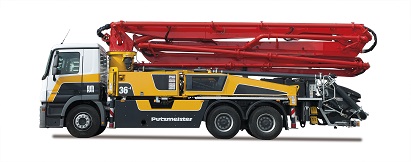

M36

M36

Click here to download the datasheet

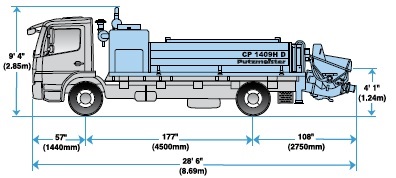

BSA 1409 Line Pump

Specifications

Pump Specifications CP 1409H D

Output — rod side 123 yd3/hr (94m3/hr)

piston side 82 yd3/hr (63m3/hr)

Pressure — rod side 1030 psi (71 bar)

piston side 1537 psi (106 bar)•

Material cylinder diameter 8" (200mm)

Stroke length 55" (1400mm)

Maximum strokes per minute —

rod side 36

piston side 25

Volume control 0-Full

Vibrator Standard

Hard-chromed material cylinder Standard

Hydraulic system Free Flow

Hydraulic system pressure 5075 psi (350 bar)

Differential cylinder diameter 4.3" (110mm)

Rod diameter 2.5" (63mm)

Maximum size aggregate 2.5" (63mm)

Water tank 79 gal (300L)

Engine

Manufacturer Deutz

Model TCD2012L062V

Horsepower 197 hp (147kW)

Fuel Tank Capacity 33 US gal (128L)

Cooling System Water Cooled

Valve & Hopper

Hopper RS 905A

S-Valve type (heavy duty cast) 2018

Reduction 8" to 6" (200 to 150mm)

Hopper capacity 19.4 cu ft (550L)

Hopper height 4' 1" (1.24m)

*Disclaimer: Specifications & Images found at Putzmeister.co.za

Click here to download the datasheet
